| MOQ: | 200 pcs |
| Price: | Negotiable |
| Standard Packaging: | 1 piece amplifier in a box, then 2 pcs in a carton. |
| Delivery Period: | 40-50 days |
| Payment Method: | T/T, L/C, Western Union，Paypal |
| Supply Capacity: | 20000 pcs per month |
1000W Audio Amplifier Board Mono Channel Digital Audio Plate Amplifier High Power Subwoofer AMP Module
Features of the Mono Sound Speaker Amplifier Module
The is a powerful plate amplifier with 1000 wattas output power. It is made out of a metal sheet that is connected to all of the ports and controls.
It is usually located on the back of a stereo speaker or subwoofer, and they are pretty much needed for every audiophile.
They can also act as the device’s built-in amplifier.
We are professional audio manufacturer, knowing what the customers need and produce the high quality audio amplifier products, all amplifiers support custom designs.
Features of Single Channel AMP Board
* High power subwoofe plate amplifier
* This audio amplifier module with DSP and remote control, you can do the setting via display
* DSP functions include: 7 PEQ bands, LPF, phase, subsonic filter, limiter, mains delay, and HPF
* Fast, intuitive PC-based GUI software enables full access to the DSP functions
* Power output at 1000W RMS.
* Class D amplifier.
* Digital technology, Regional Module Design
* Switching power supply provides excellent efficiency
* Switchable 110/230V power voltage
* Capable of sustained, continuous output without thermal shutdown
* Built-in limiter circuit protection prevents peak overloads
* Standby on/auto mode options
* Low-level, high-level, and LFE inputs for flexible interconnection
* Large power with MCU signal processing ,good dynamic control, designed for home theater subwoofer
* The plate amplifer Includes both balanced and unbalance line level inputs and outputs
* The subwoofer speaker with green 0.5-watt low standby power consumption
* RoHS compliant, lead-free construction, world-wide safety certifications
* This power amplifier module with sturdy and reliable performance
* OEM and ODM are amplifier design.
Specification of the Mono Amplifier Plate
|
Model No./ Item |
SUB-500DSP | SUB-1000DSP |
|
Output Power RMS@4Ohm |
500W | 1000W |
| Frequency Response | 25-250 Hz | 25-250 Hz |
| Total Harmonic Distortion | <1% | <1% |
| Signal to Noise Ratio | >90dB | >95dB |
| Input Sensitivity | 180mV | 180mV |
| DSP | Yes | Yes |
| Built-in Standby Mode | ON / AUTO Switchable | ON / AUTO Switchable |
| Auto Off time | 15 mins | 15 mins |
| Auto On Sensitivity | 5 mV | 5 mV |
| Standby Power Consumption | Low than 0.5W | Low than 0.5W |
| Protection | Short, Over-heat, Over-current,Over-load | Same As Previuos |
| Working Voltage | 110V / 230V AC Selected | Same As Previuos |
| Dimensions (W X H X D) | 200*252*3.0 mm | 310*254*3.0 mm |

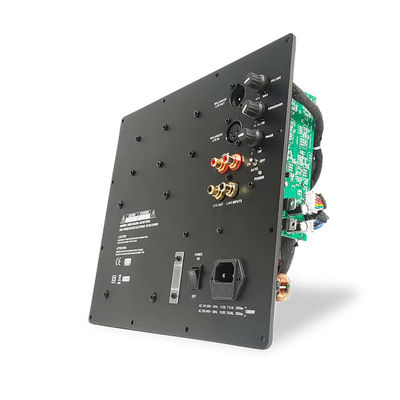

Pictures of class D subwoofer plate power amplifier
|
|
